The underbody washing for high demands:

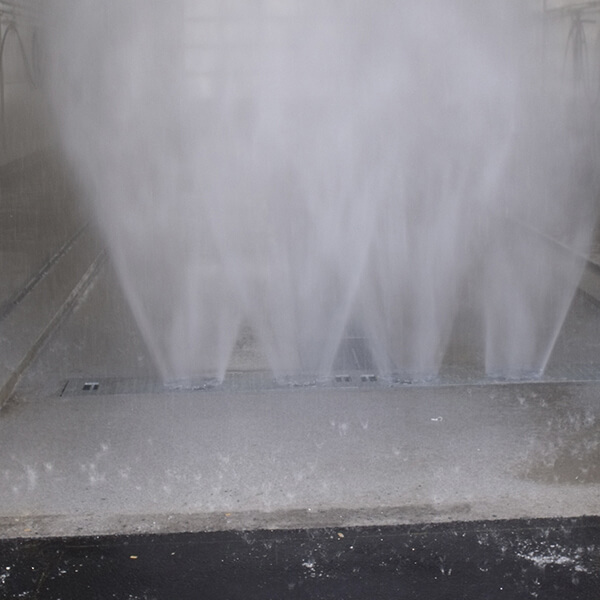

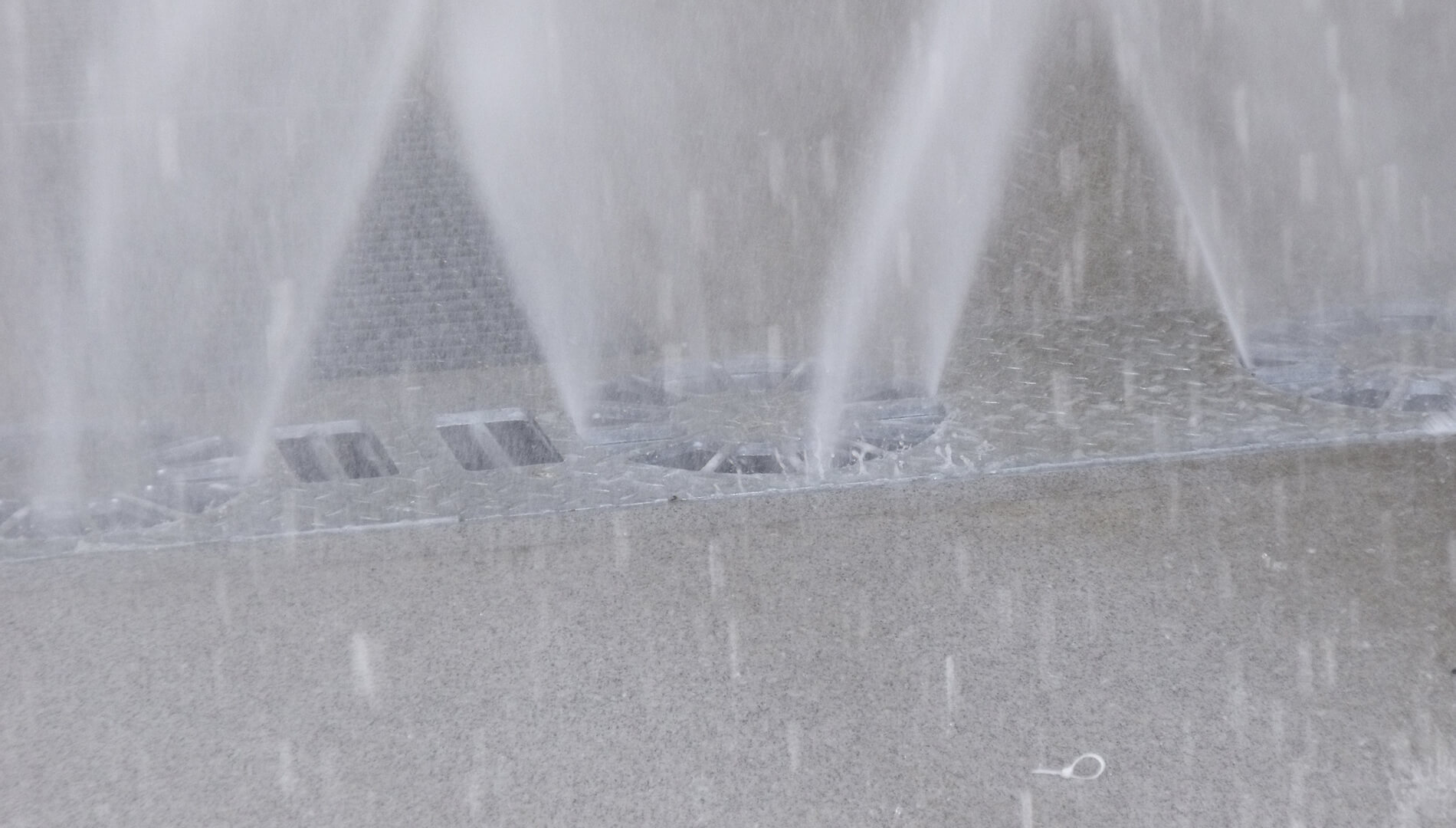

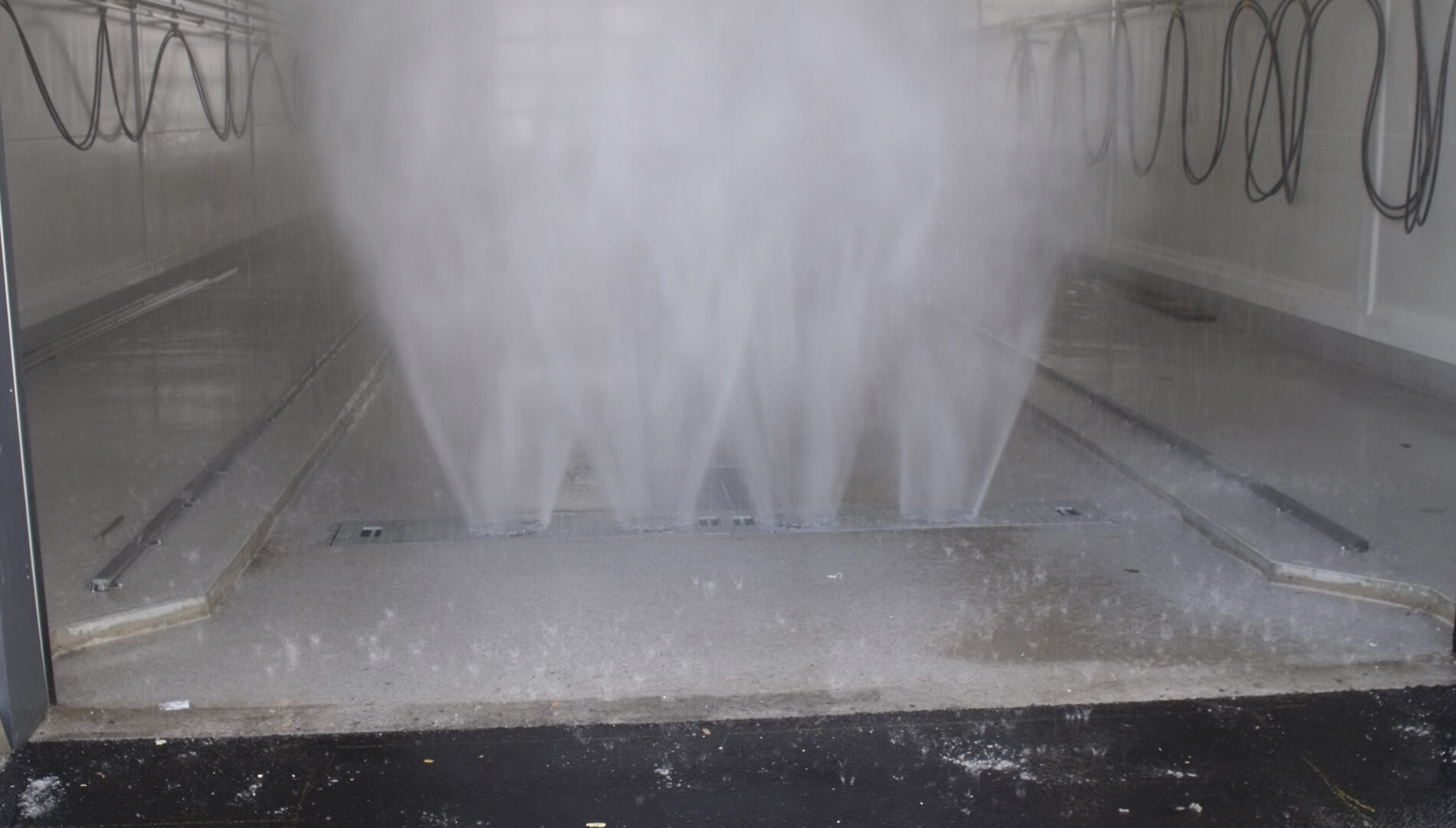

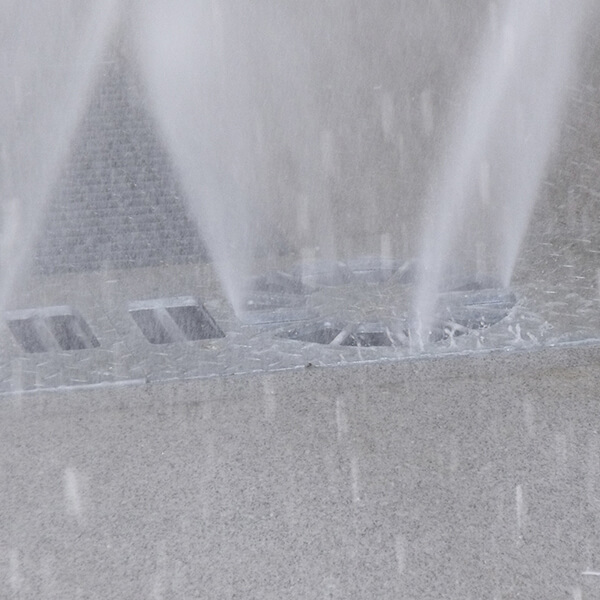

Stationary installation frame with 4 hydraulically driven high-pressure heads to clean the underbody of cars, busses, trucks, vans and other vehicles. The cleaning of the surfaces is optimized by the rotating heads. Automatic activation by light barrier or inductive loop.

RCW 2 standard-equipment:

  • 4 hydraulically driven high-pressure heads, rotation speed adjustable independently of the water-pressure, rotation direction of the heads in direction of the nozzles to optimize the cleaning

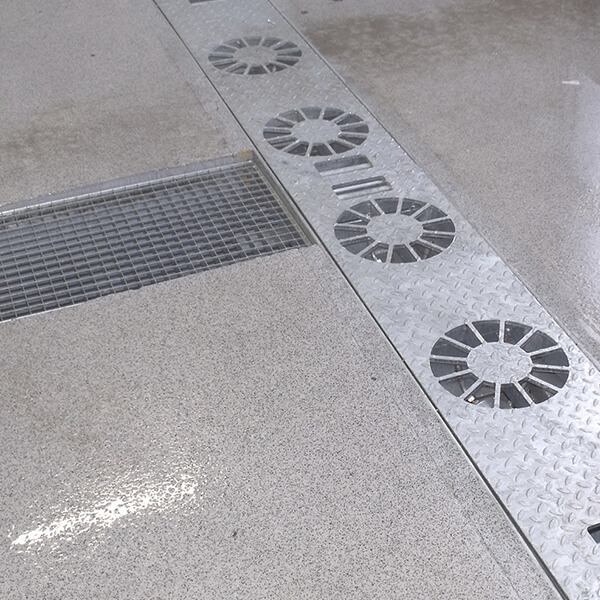

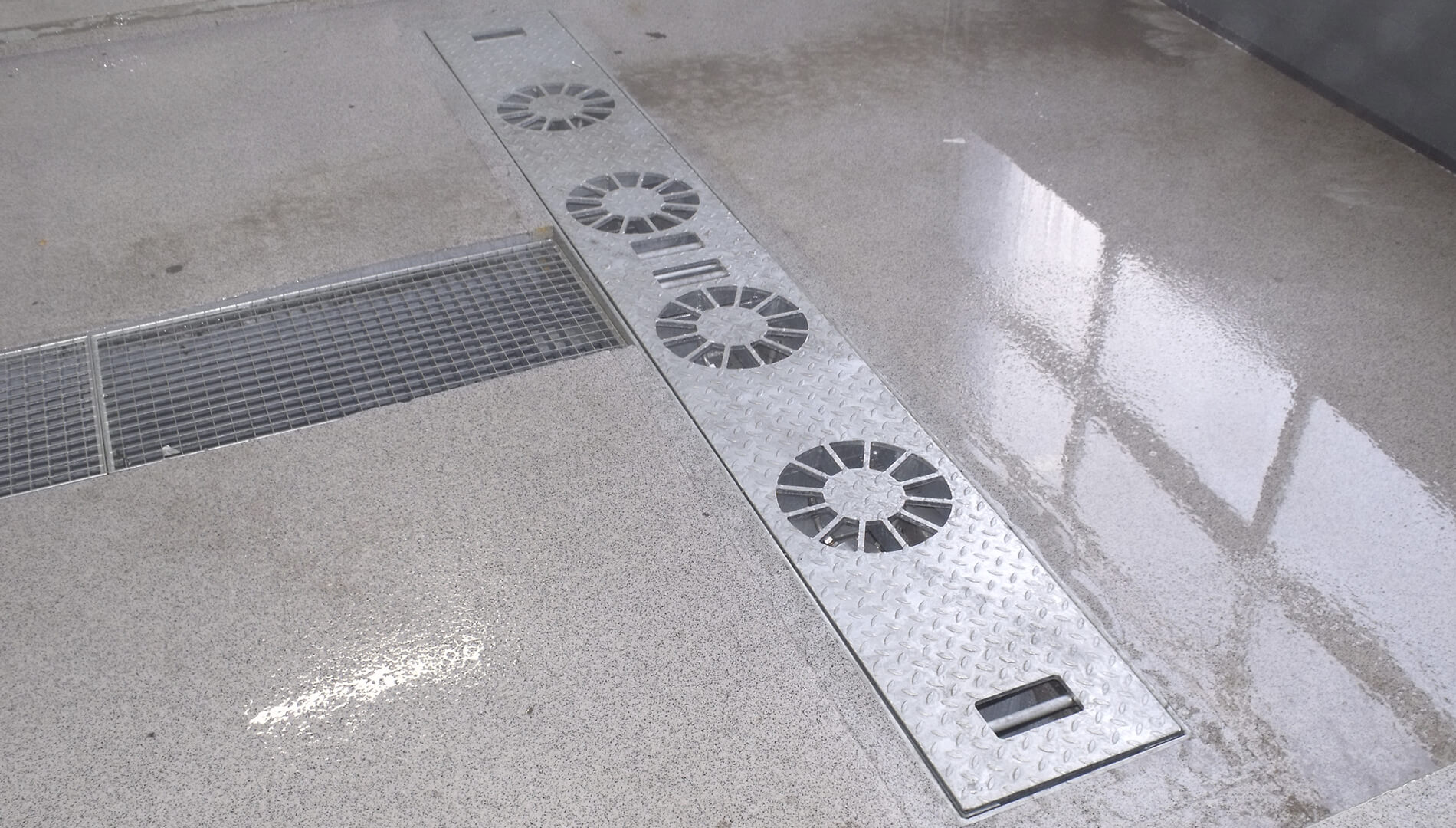

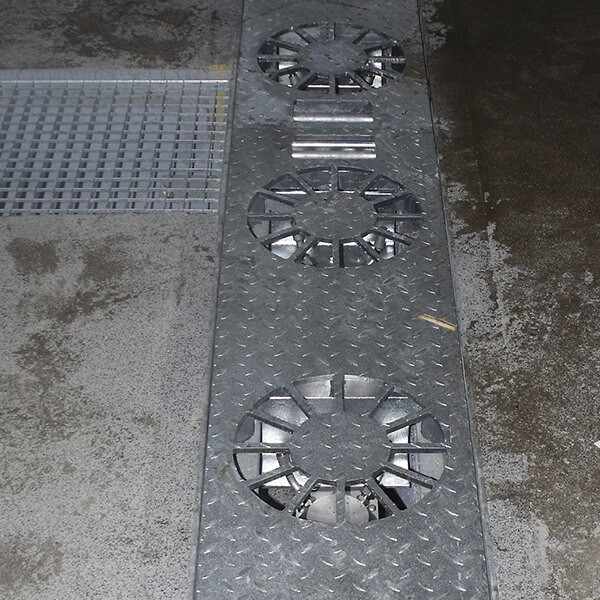

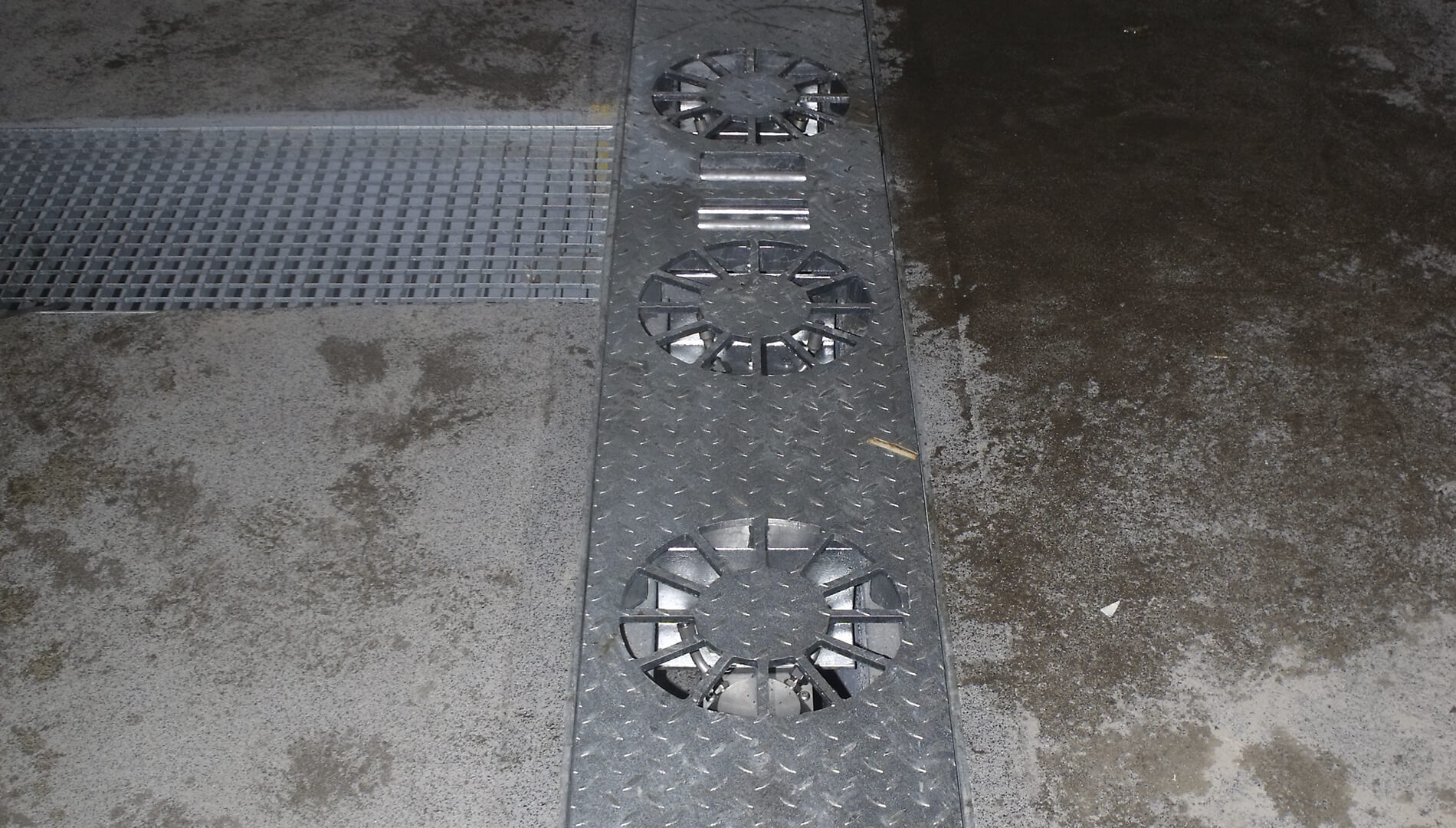

  • Frame construction consists of galvanized steel pipes with grating cover
  • Water consumption 240 l / min per 25 bar, other flow rates and pressures available on request maximum working pressure 120 bar
  • Automatic activation by light barrier or inductive loop
  • Control cabinet equipped with soft starter for the high-pressure pump
